CLIP-ON Night VISION SYSTEM RPG-7
CLIP-ON Night VISION SYSTEM RPG-7

CLIP-ON Night VISION SYSTEM RPG-7

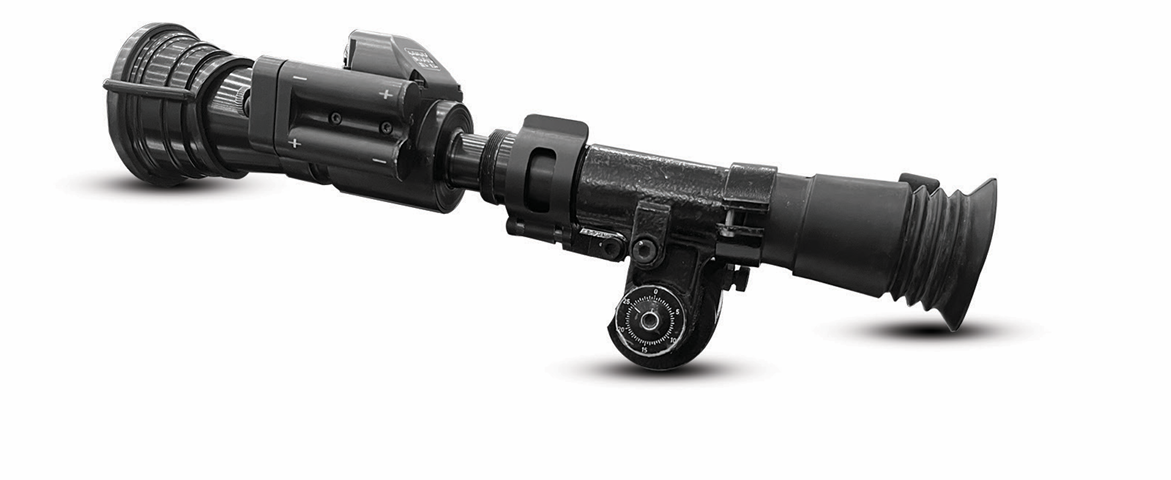

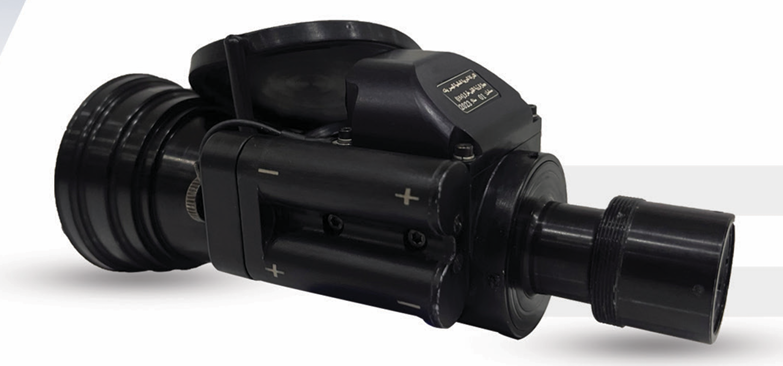

  •           The CLIP-ON night Vision System is designed to convert PGO-7 day sight to night sight for an RPG-7 launcher to add the possibility of engagement at night without the need for rezeroing, mechanical adaptors can be changed to work with other weapons.
  •           Equipped with high performance Gen2+ or Gen3 IITS.

 Technical Specifications

Spectral response



0.45 um-0.9 Em



Magnification



1X



Field of view



13°



Objective's EFL



75 mm



Focus range

Fixed



f-number



1.5



Image intensifier tube



18mm Gen2+ or Gen3



Eyepiece focal length

75mm



Exit pupil diameter



12mm



Eye relief



10mm



Battery type

2x Model AAA



Operation time





> 40 hours at 22°c

Overall Weight



< 550gm (with bracket & batteries)



Overall dimension(LxWxH)



(178x60x65)mm



Temperature range

-20°c to +65°c



Enviromental

MIL-STD-810H
