INTEGRATED GROUND SURVEILLANCE SYSTEM
INTEGRATED GROUND SURVEILLANCE SYSTEM
INTEGRATED GROUND SURVEILLANCE SYSTEM
INTEGRATED GROUND SURVEILLANCE SYSTEM

INTEGRATED GROUND SURVEILLANCE SYSTEM

  • The system has been designed and implemented according to standard military specifications to achieve the operational requirements for securing the land borders using modern technology.

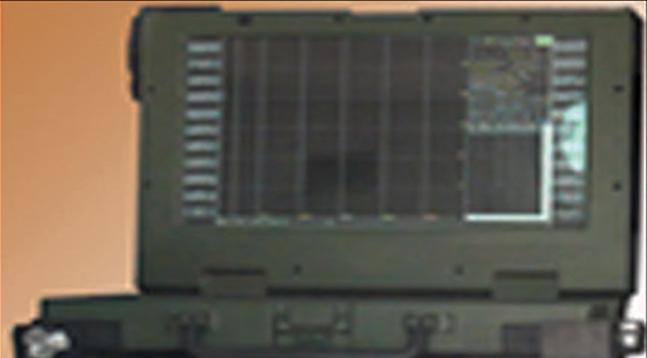

  • It basically consists of an electro-optical system and a radar system both interfaced together.
  • The system is characterized by being easy to move and use, besides being highly efficient both in combat and technically. Technical validity for all included systems could be quickly restored and connected to both the branches and main Operation Centers.

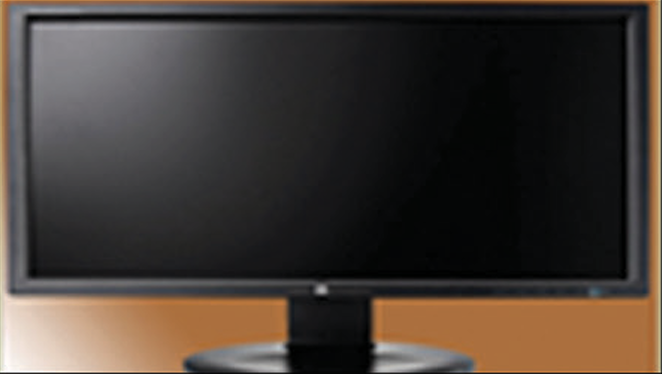

  • The system detects and tracks, using a radar system, all ground targets (men - vehicles - tanks) at night as well as during the day in different and difficult weather conditions. It then transmits the information automatically to the electro-optical system interfaced to it. It's directed automatically towards the target. It's monitored by a daylight camera or a thermal camera and is displayed on the camera's screen.

Technical Specifications

Radar System

Specification

Man

Vehicle

Tank / Battleship

Detection and Tracking

8 km

15 km

24 km

Weight of Radar

35 kg

-

-

Resolution in Distance Measurements

10 m

-

-

Resolution in Angle Measurements

0.3°

-

-

Power Supply

220V (AC) or 24V (DC)

-

-

Electro-Optical System

Specification

Tank / Battleship

Small Tank

Man

Targets Detection at Day and Night

20 km

15 km

6 km
  • Zoom feature for the day and thermal camera
  • Power management unit for observation head

Power Supply

  • City Current 220V, 50HZ external or through a separate electronic electrical system relying on electric batteries.

Telescopic Mast

Specification

Value

Maximum Altitude

10 m

Minimum Altitude

1 m
