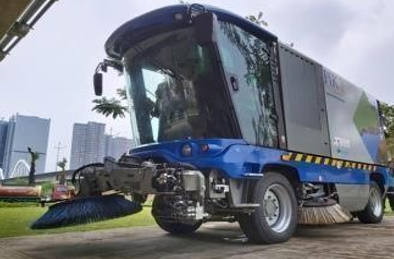

AF6000 ROAD SWEEPER -Italy

The AF 6000 road sweeper is easy to drive, reliable and with a superior sweeping quality.

Specifically designed to sweep streets, motorways, airports and ports, industrial plants in a simple and efficient way. The large windscreen allows the operator to have a wide view at 180°, all controls are simple and intuitive thanks to the installed Can Bus. The innovative hydro-pneumatic suspensions, electronically controlled, can easily be lifted during transfer or to overcome obstacles on the way. They provide more comfort to the driver and prevent accidental damages to the sweeping components. The 4 wheels steering assure high maneuverability also in narrow spaces. The pressure on the ground during operation is constant and it is maintained even on rough and uneven floor. The large filter with automatic cleaning and high-class fabric, assure the lowest emission.

Model: AF6000 Mechanical Road Sweeper Euro 3 Gasoline Configuration:

·        Mercedes Turbo Diesel engine, water cooled, 130 K

·        Full hydrostatic (traction and operation)

·        Back traction as a standard setting

·        Speed 42 Km/hour

·        Stainless waste hopper capacity = 6 mc (hydraulic closure)

·        Belt elevator for efficient collection of the waste

·        Leaf vacuum system diam.150 / length 5000 mm

·        High performance extraction fan

·        Suction nozzle for debris collection on the back

·        Filter for dust and suspended particles

·        N.1 Central brush diam.650 mm, L = 1400 mm

·        N.2 Side brushes diam. 1.000 mm

·        Pump + high pressure nozzle + 15m winder system

·        Water tank capacity = 690 Lt.

·        Cabin with central driving seat and side seat

·        Air conditioning (heavy duty version for hot areas)

·        CAN BUS to control all functions from cabin and remote

·        Rear camera
