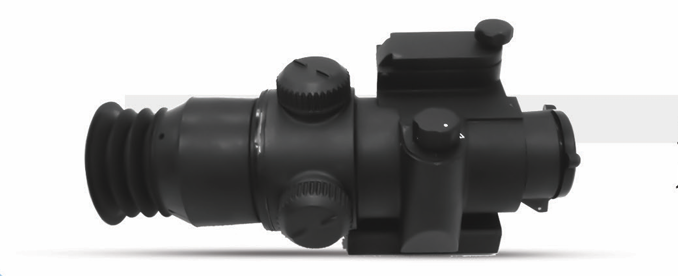

AIMING DAY SIGHT SYSTEM FOR 40mm GRENADE LAUNCHER MK-19
- · M12 is a day sight aiming system with a distance input device that is intended to be installed and used with the 40mm Grenade Launcher MK-19 for aiming fixed and moving targets.
- · M12 system is used to aim at distances up to 2000m during daylight and that distance may be reduced according to vision conditions.
-
Technical Specifications
|
Optical Magnification
|
x3.5±0.2
|
|
Field of view
|
≥12"
|
|
Exit Pupil Diameter
|
≥ 5.7 mm
|
|
Eye Relief
|
≥46 mm
|
|
Windage Corrections Range
|
34Minute (10 mrad)
|
|
Scale Division Value of the Windage Corrections
|
34Minute (1 mrad)
|
|
Vertical and Horizontal Alignment Range
|
+40
|
|
Alignment Click
|
40 sec (2cm per 100m)
|
|
Distance Input Range
|
0 to 2000 m
|
|
Distance Input Range Division value
|
100m step
|
|
Deviation corrections and distances within 2000m
|
20Minute |
|
Operating Temperature
|
-30°C to +50°C
|
|
Dimensions
|
Sight Distance Input Device
|
|
|
L200 mm 210mm
W 85 mm 170mm
H 95 mm 142 mm
|
|
Weight
|
Sight Distance Input Device
0.9 Kg 3.75 Kg
|
