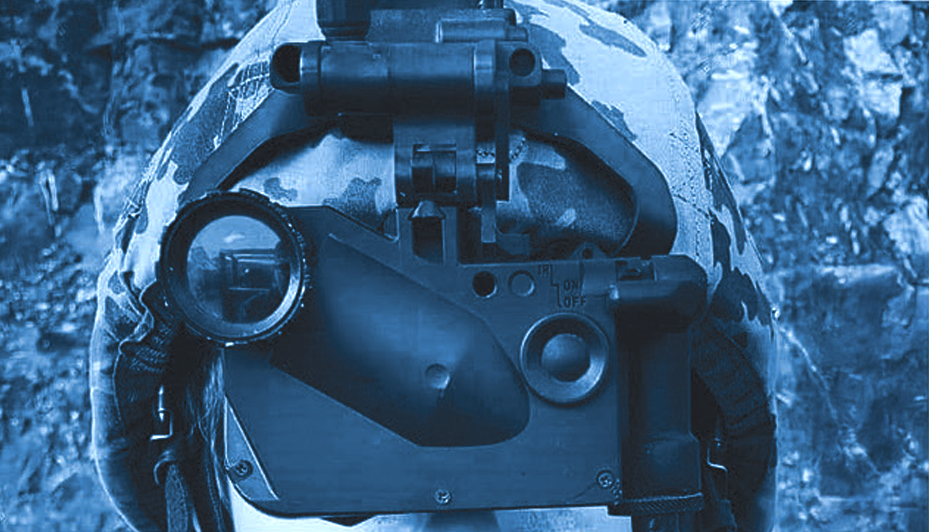

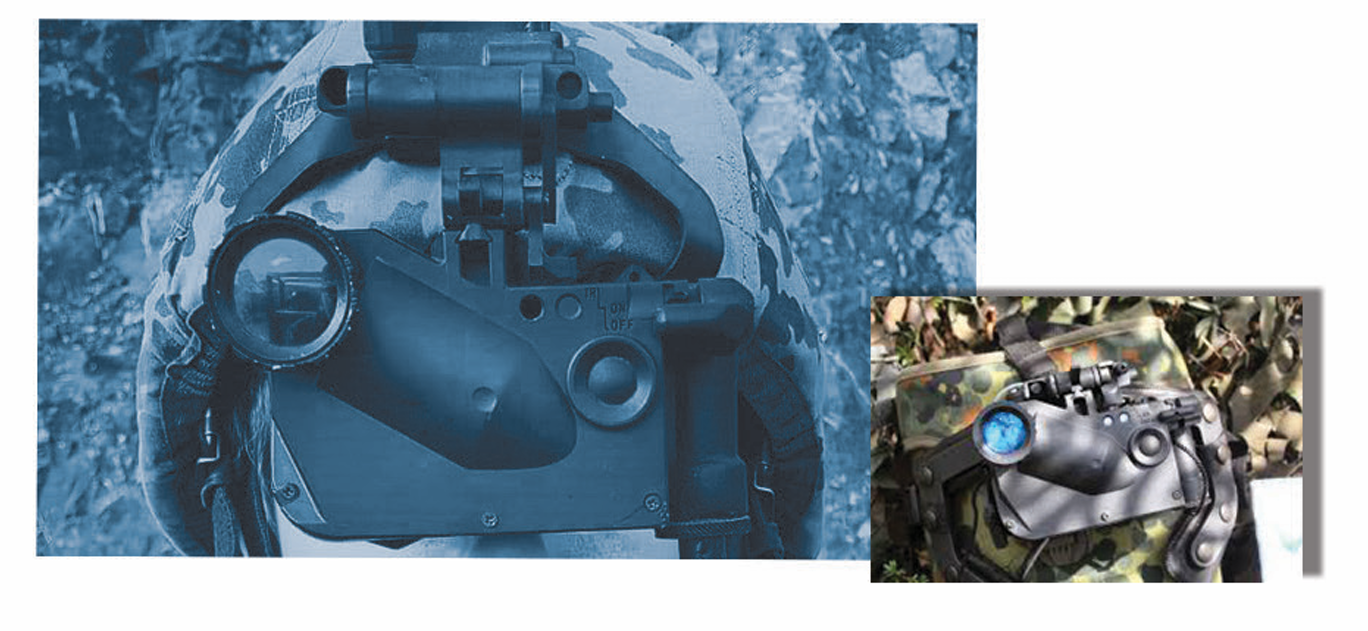

LUCIE Compact night vision goggle
TYPICAL DATA
|
Magnification |
1x
|
|
Field of view
|
51°
|
|
with 3.8x magnifier |
9° (OPTIONAL)
|
|
with 5x magnifier
|
10° (OPTIONAL)
|
|
Focus range
|
20 cm to infinity
|
|
Diopter adjustment
|
-5 to 3+ diopters
|
|
Eye relief
|
17 mm
|
|
Weight with battery
|
435 g
|
|
Dimension
|
127(L) x 69(W) x 79(H) mm
|
|
ITube |
Gen. Il or Gen. III
|
|
Autogating
|
Optional
|
|
Power source
|
1x 1.5V AA standard battery or 1x 3.6V AA standard battery or 1x 1.2V AA rechargeable battery
|
|
Battery lifeBattery life
|
45 h at 20°C (1.5V AA battery+ standard tub
|
|
Operating temperature
|
-40C to +45°C
|
|
Storage temperature
|
-40C to +65°C
|
|
Water immersion
|
1 m for 2 h "Navy" version on request
|
Others
- · Built-in infrared illuminator with "IR-on" indicator
- · Automatic cut-off in high light conditions
- · Automatic cut-off in stowed position
- · "Low battery" indicator
