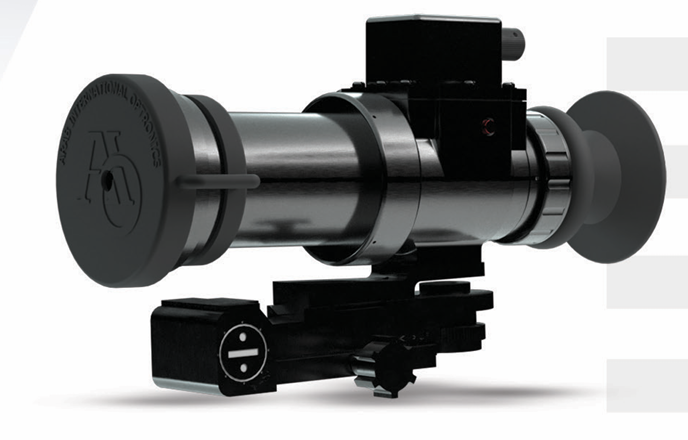

Aiming Night Device For RPG-7 Model MINI OWL
- · Aiming night device model MINI OWL is designed for 3 times magnification.
- · The sight is based upon an 18 mm image intensifying tube, both second (+) and third generation
technology being available.
- · Can be adapted to fit RPG-7.
- · Characteristics include: high image Resolution, light weight and ease of use.
-
Technical Specifications
|
Spectral response
|
0.45 km -0.9 km
|
|
Magnification
|
3x
|
|
Field of view
|
13°
|
|
Equivalent resolution
|
2.6 lp/mrad
|
|
Objective's EFL
|
75 mm
|
|
F-number
|
1.3
|
|
Image intensifier tube
|
Gen2+, Gen3
|
|
Eyepiece focal length
|
25mm
|
|
Exit pupil diameter
|
8mm
|
|
Eye relief
|
25mm
|
|
Eyepiece diopter range |
+2 dpt to - 4 dpt
|
|
Battery type
|
2x1.5 v Model AAA |
|
Opteration time |
> 40 hours at 22°c
|
|
Overall Weight
|
1050gm (without bracket & batteries)
|
|
Overall dimension (LxWxH) |
(240x90x135) mm
|
|
Temperature range |
-20°c to +65°c |
|
Environmental |
MIL-STD 810H
|
|
Range Performance
|
Vehicle
|
|
RECOGNITION
|
500m
|
