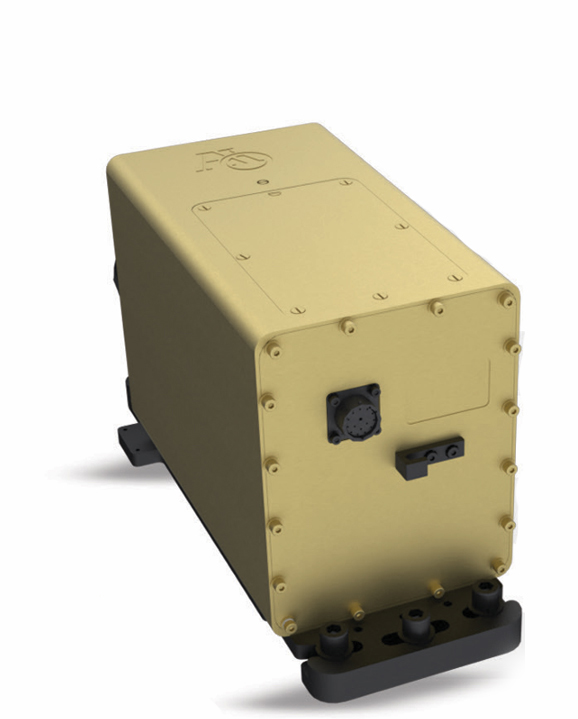

Long Range Thermal Imager Observation System Model D69
· D69 is an uncooled thermal aiming camera. It offers design with great performance and reliability.
Technical Specifications
|
Specification |
Details |
|
Detector Type |
Microbolometer UFPA 640×480 Pixels |
|
Pixel Pitch |
17μm |
|
Spectral Band |
8-12μm |
|
Frame Rate |
50 Hz |
|
Thermal Sensitivity |
NETD - 40 mk @ (F # 1, 30°C) |
|
E.Zoom |
x2, x4 |
|
Objective E FL |
150mm |
|
Objective F# |
1.15 |
|
F.O.V (HxV) |
4.2° × 3.1° |
|
Range Focus |
25m to infinity (Motorized) |
|
Diopter Focus Range (Display Unit) |
±5 diopter |
|
Exit Pupil Diameter (Display Unit) |
8mm |
|
Eye Relief (Display Unit) |
25mm |
|
Usage |
Remote Surveillance on Tripod or Vehicles |
Range Performance (According to Johanson’s Criteria Probability 50%)
|
Vehicle Critical Dimension (2.3m) |
Human Critical Dimension (0.75m) |
|
|
Identification |
1700m |
550m |
|
Recognition |
4000m |
1100m |
|
Detection |
10300m |
3500m |
Additional Features
|
Feature |
Details |
|
Reticle Type |
8 digitally reticle patterns could be injected on board |
|
Boresight Adjustment Type |
Digitally Controlled |
|
Weight |
Thermal Imager 8 kg |
|
Dimensions (W × H × L) |
130mm × 150mm × 190mm |
|
User Interface |
Easy and intuitive drop-down user interface |
|
Color Mode |
White hot / hot white / green / rainbow / various color modes |
|
Battery |
External battery (vehicle battery) 24V DC |
|
Power Consumption |
1 W |
|
Operating Temperature Range |
-20°C to +60°C |
|
Environmental |
MIL-STD-810H |
