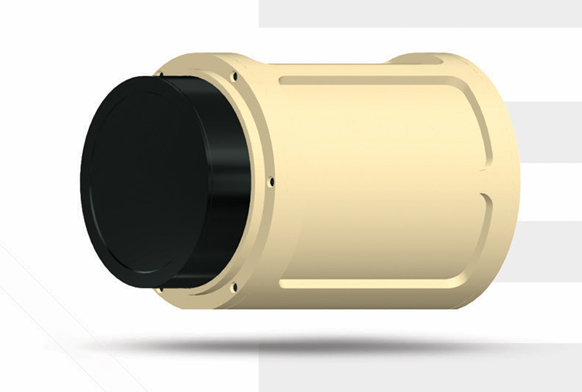

Long-Range Thermal Imager Model Z50
· The Z50 is an uncooled thermal camera for surveillance and aiming.
· Z50 designed and manufactured to military standards
·
Technical Specifications
|
Specification |
Value |
|
Detector Type |
Uncooled microbolometer (1280×1024 pixels) |
|
Pixel Pitch |
12 µm |
|
Spectral Band |
8-14 µm |
|
Objective EFL |
120 mm (athermalized) |
|
Objective F# |
1 |
|
Focus Range |
Fixed |
|
Sight Weight |
4.2 kg |
|
Dimensions (L×W×H) |
252.5 mm × 165 mm × 165 mm |
|
NETD |
<40 mK @ 300 K, f/1.0 |
|
Field of View (HxV) |
7.3° × 5.8° |
|
User Interface |
13.3" tablet full HD display |
|
Display Weight |
2.5 kg |
|
Power Consumption |
4W @ 5V |
|
Temperature Range |
-20°C to +60°C |
|
Environmental Standard |
MIL-STD-810H |
Range Performance
|
Capability |
Vehicle (2.3m) |
Human (0.75m) |
|
Identification |
1900m |
600m |
|
Recognition |
3000m |
1000m |
|
Detection |
7000m |
3000m |
