ADMINISTRATIVE PREPARATION OF THE TRUCK VEHICLE AS AN ACCOMMODATION OF FORCES IN ISOLATED PLACES

·  AIO has designed and implemented a full accommodation container for the Ural vehicle. It serves as a residence and accommodation place for 8 persons. It operates with the Hummer vehicle mounted with the Ground Surveillance system. It is used by forces in isolated locations.

·  Optimum use of available space together with using materials and tools that fulfil durability and use terms were considered at the design stage.

·  Low weight of materials and low consumption of power were considered in the design.

·  The body of the container is made of aluminum alloy while the walls are covered with aluminum alloy plates.

·  The container offer ballistic protection.

·  Ironclad doors are provided.

·  Shielded Window for MPMG.

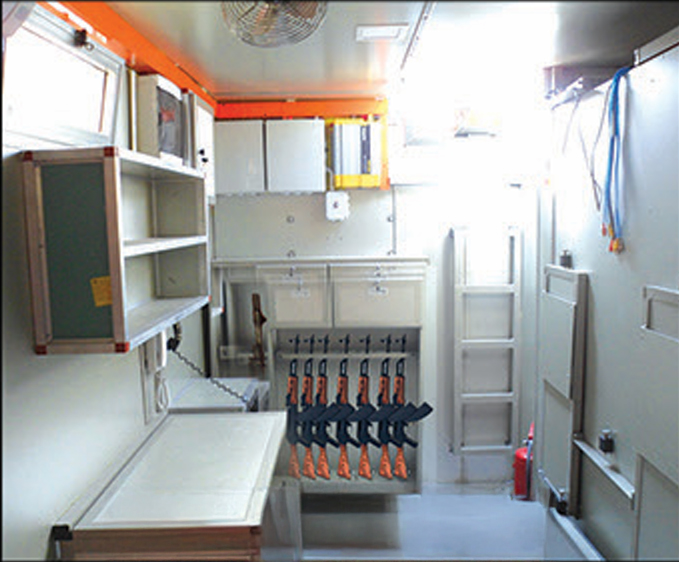

·  Safety Store for keeping the M / C Gun & Weapon is available.

·  (5) windows for ventilation are provided with wire to protect against mosquitoes and transparent anti-breakage plastic sheets.

·  Air conditioning and 5 fans for ventilation, are provided.

·  Electrical connections conforming to the technical Delete and standard specifications.

·  Water and sanitary pipe line that conforms to standard specifications and health conditions.

·  An accommodation room for 2 officers.

·  An accommodation room for 6 persons.

·  2 toilets (officer / men).

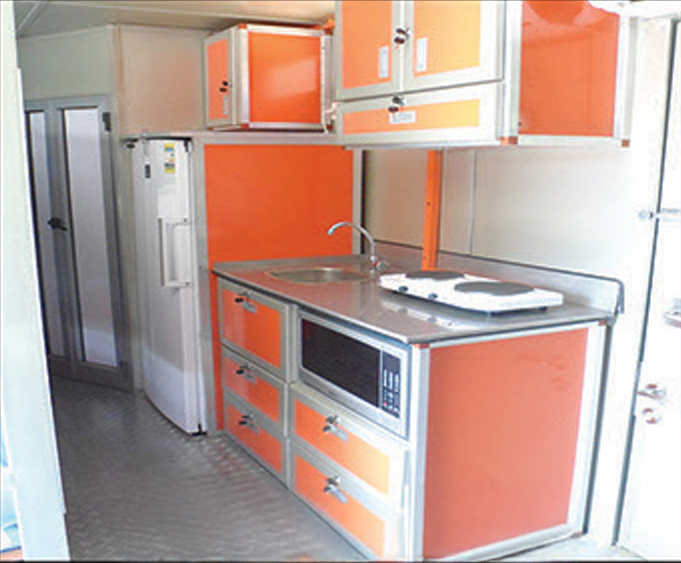

·  Fully equipped kitchen.

·  Multi - purpose Room.

·  A corner for dining.

·  Reserve fuel reservoir / reserve fuel container.

·  Storage area, capacity 1.5 m³.
