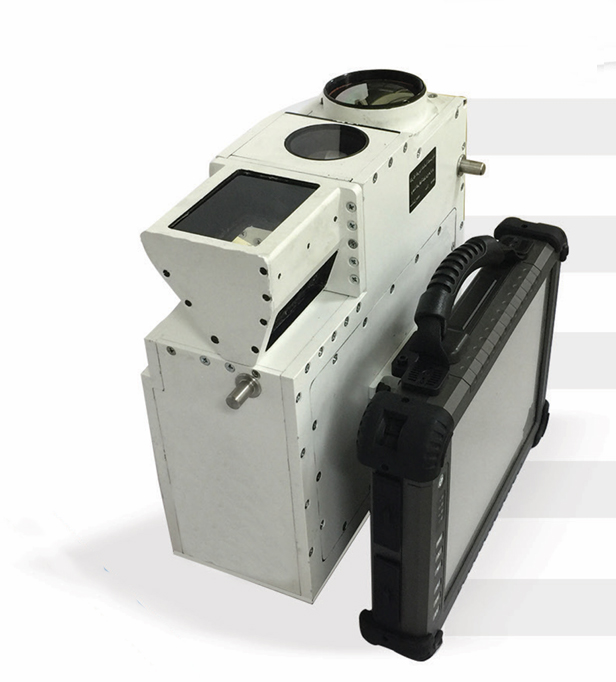

DAY NIGHT OBSERVATION SYSTEM FOR GUNNER OF YPR VEHICLE (D63)
The Day/Night observation system for YPR Vehicle is composed of the following major parts:
- Day Light Camera - Thermal Camera
- Display & Control Unit - Power Supply
Technical Specifications
Day Camera Specifications
|
Parameter |
Specification |
|
Technology |
CMOS - Monochromatic |
|
Pixel size |
5.2μm x 5.2 μm |
|
Frame rate |
30 Frame/sec : 90 Frame/sec |
|
Sensitivity |
0.5Lux @ f1 |
|
Dynamic range |
55dB |
|
Auto exposure |
Automatic / Manual |
|
Power |
12-48VDC |
|
Power Consumption |
< 4 watt |
|
Operating Temperature |
20°C : +55°C |
|
Focal length |
54.25mm ± 0.5mm |
|
FOV (Field of View) |
7° ± 10 % (HFOV) |
|
Reticle |
Nato standard crosshair |
|
Vision block |
1 : 1 |
Thermal Camera Specifications
|
Parameter |
Specification |
|
Wavelength |
8-14 μm |
|
Pixel Uncooled |
640x480 |
|
Pixel Pitch |
17 μm |
|
Frame rate |
60 Hz |
|
Detector Sensitivity |
~50mK @ 30°C w/fL1 |
|
Objective Lens |
100mm F1.4 |
|
FOV (Field of View) |
6.2° ± 10 % (HFOV) |
|
Operating Temperature |
-20°C : +60°C |
|
Storage Temperature |
-25°C : +70°C |
|
MRTD |
≥ 0.5 °C |
|
Power |
6-12 VDC |
|
Power Consumption |
< 3.12 W |
|
Range (Tank) |
Detection: 6700m |
|
Reticle |
Nato standard crosshair |
|
Resolution min |
0.5 m radian |
